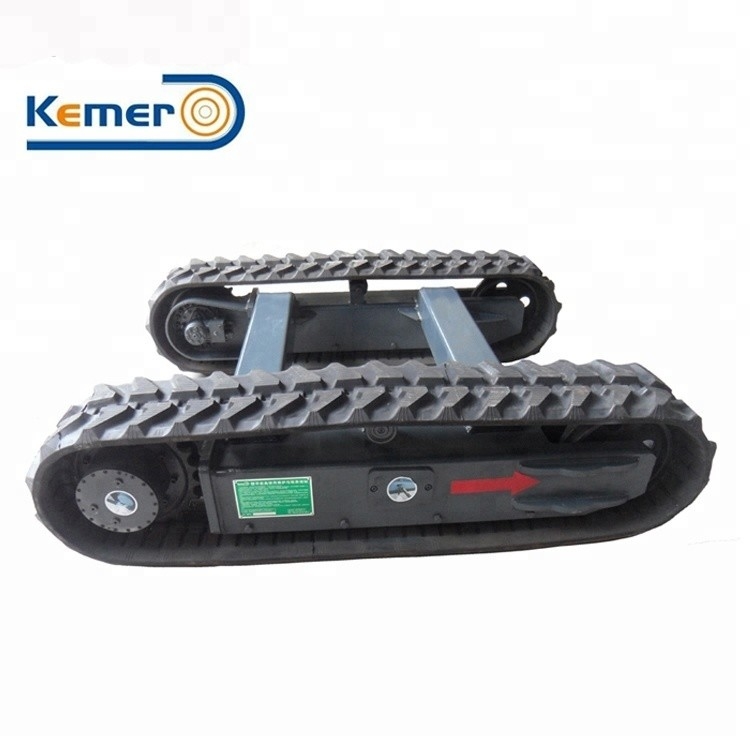

Large Image :  2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability

Product Details:
Place of Origin: Zhejiang, China
Brand Name: KEMER
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $4,700.00/sets 1-9 sets

2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability

Description
Condition: New Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining
Showroom Location: None Video Outgoing-inspection: Provided
Machinery Test Report: Not Available Marketing Type: New Product 2020
Warranty: 1 Year Type: Rubber Crawler Track
Application: Cherry Picker Or Fruit Picker,drilling Rigs Color: Black Or Per To Customer
Loading Capacity: 3 Ton Payload: 2.2 Ton
OEM: Avaliable After Warranty Service: Video Technical Support
After-sales Service Provided: Video Technical Support

Product Description

2018 Directly supplied Factory customized Rubber Crawler Track

This model of  rubber crawler track is KRT3000.

SPECIFICATIONS FOR 3 TON RUBBER CRAWLER TRACK

Dimension
Length
1826mm
2425
Width
mm
800-2300
Height
mm
495

Specification
Ratio
21.4
Max Gradeablity
°
<=35
Rated Pressure
Mpa
25
Technical Data
Travelling speed(single side 22L/min)
Km/h
0-3
Output torque(single side)
N.m
3000
Loading capacity
T
3
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 0
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 1
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 2
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 3

Main Features

1) The wider width can make the Rubber Crawler Track stable and reliable .

2) Equipped with doosan motor which can be easily changed when the motor do not work.

3)We use two speed motor on this model of rubber crawler track,when you transfer from one place to another it can travel in the fast speed,when it is working it can tavel in a low speed.This can best suit your needs.If you need a wider speed range,you can choose a variable displacement pump with fix displacement motor.That depends on your needs.

4) When the field is muddy,the rubber drawler track is a best solution.

Other Models
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 4
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 5
Our Service
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 6

Pre-Sales Service

* Inquiry and design support. Choose the best solution.

* Sample testing support.

* View our Factory.

2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 7

After-Sales Service

* Our products are all purchased by manufacturer of the whole machine so we will supply the suggestion about the

system specs.

* We can supply the spare parts in the warranty.

Application
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 8

This model (KRT3000)of rubber crawler track is used on fruit pick machine.

Packing & Delivery
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 9
Packaging
Size
1.8(L) * 2 (W) * 0.72 (D)
Weight
1.1 T



Packaging Details
Usually we pack the rubber crawler track by steel pallet and wrapping film.And the slew beaing is packed by wooden box.But as the width is 2300mm,so we did not use the steel pallet for this model of rubber crawler track.If you have special needs about rubber crawer track,we will pack it  according to customers special request.
2020 Directly Supplied Customized Rubber Crawler Track with OEM Availability 10
Packaging
Size
0.7 (L) * 0.7(W) * 0.8 (D)
Weight
800KG



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too high,we will use pe film for packing or pack it according to customers special request.
