Video Technical Support After Service Steel Mini Crawler Undercarriage with Rubber Pads

Large Image : Video Technical Support After Service Steel Mini Crawler Undercarriage with Rubber Pads

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	KRT6800

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3,600.00/sets >=1 sets

Contact Now

Video Technical Support After Service Steel Mini Crawler Undercarriage with Rubber Pads

Description

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining	Showroom Location:	None
Compatible Brand:	Other	Year:	-
Working Hours:	10001-20000	Type:	Mini Crawler Undercarriage
Loading Capacity:	7 Ton	Payload:	5.5 Ton
Max Gradeability:	35%	Customized Service:	Available And Free
Color:	Black Or Per To Customer	Application:	Rubber Track Drive System Machine
After Warranty Service:	Video Technical Support	After-sales Service Provided:	Video Technical Support

Product Description

2018 Ningbo Supplier Factory Rubber Track Drive System

Length	1200mm
Loading Capacity	1000 KG(set)
Payload	500-600 KG(set)
Distance between center	829 mm
Pitch	72 mm
Track width	180 mm
Track Frame	No/Weld/Bolt
Motor Displacement	16.1 ml/r
Max speed	2.3 km/h(Each side 23L/min)
Max Output Torque(each side)	1150N.m
Max Gradeability	35%

Products details:

1.Customized track frame.We can customized the Rubber crawler undercarriage according to customer's needs.

2.Maintenance:tips to help customers how to maintain the crawler undercarriage and how to longer the service life.

3.Good spare parts

Other Model

We can customized the Rubber crawler undercarriage according to your needs Above is just some of our models.

Our Company

Ningbo Kemer Engineering Machinery Co.,LTD

We located in Ningbo China.With many years' experience in this field,our undercarriage parts are specially selected and fabricated.

Have been exported to South Asia,Australia,Turkey,Brazil and many other countries.

Products are widely welcomed by our customers.

Customized service is available here.We usually customized the Rubber crawler undercarriage according to customer's needs like the length,width,track width,loading capacity,speed and so on.If you have detailed drawing we can make accordingly.

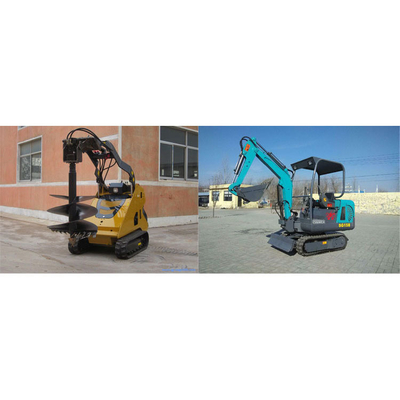

Usually machine facotry will buy Rubber crawler undercarriage from us and connect to their machines.

Our Products

0.5 to 80 ton Track Assembly is available here.0.5 to 10 ton Rubber Crawler Undercarriage

We make 0.5 to 80 ton crawler undercarriages.

KRT3000

3 ton Rubber crawler undercarriage

KRT4000

4 ton Rubber crawler undercarriage

KRT1500

1.5 ton Rubber crawler undercarriage
