5.5 ton Payload Rubber Undercarriage Chassis for Construction Machines in High Demand

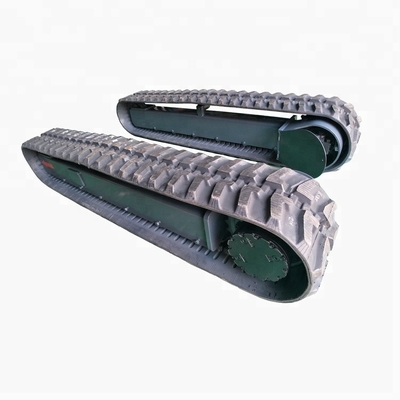

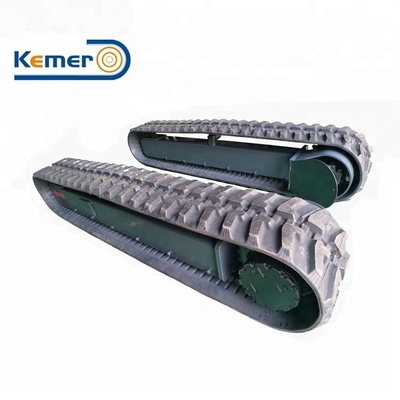

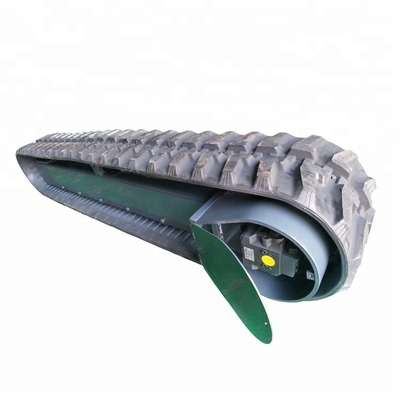

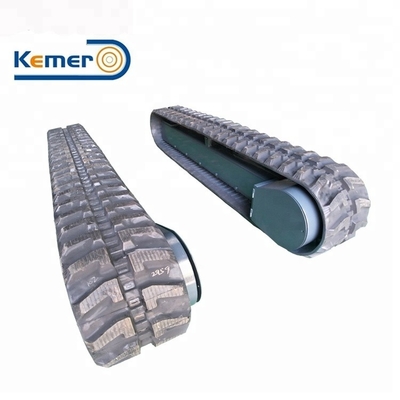

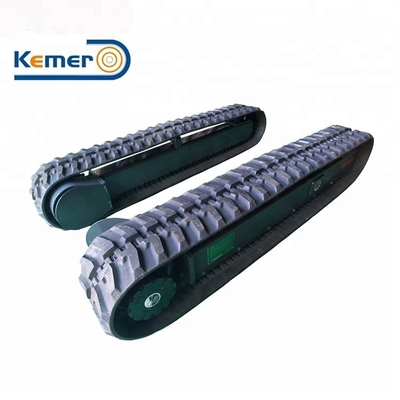

Large Image : 5.5 ton Payload Rubber Undercarriage Chassis for Construction Machines in High Demand

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	KEMER
Model Number:	KRT6800

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$5,500.00/sets >=1 sets
Packaging Details:	Steel pallet ,with Stretch film Winding
Supply Ability:	50 Set/Sets per Month

Contact Now

5.5 ton Payload Rubber Undercarriage Chassis for Construction Machines in High Demand

Description

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining	Showroom Location:	None
Type:	Rubber Track Drive System	Loading Capacity:	7 Ton
Payload:	5.5 Ton	Other Motor Choice:	Available
Max Gradeability:	35%	Customized Service:	Available And Free
Color:	Black Or Per To Customer	Application:	Rubber Track Drive System Machine
Warranty:	1 Year, 1 Year	Condition:	Used
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Marketing Type:	Ordinary Product	After-sales Service Provided:	Video Technical Support, Online Support
Port:	Ningbo/Shanghai

Product Description

Hot sell Construction Machines Rubber Undercarriage Chassis

Length	2521mm
Loading Capacity	6800-7000 KG
Payload	5500 KG
Distance between center	2032 mm
Pitch	52.5 mm
Track width	350 mm
Track Frame	Weld
Motor Displacement	49.2/26.3 ml/r
Max speed	1.4/3.1 km/h(Each side 50L/min)
Max Output Torque(each side)	7080/3180N.m
Max Gradeability	35%

Products details:

1.Customized track frame.We can customized the Rubber Undercarriage Chassis System according to customer's needs.

2.Maintenance:tips to help customers how to maintain the undercarriage and how to longer the service life.

3.Good spare parts

Other Model

We can customized the Rubber Undercarriage Chassis according to your needs Above is just some of our models.

Our Company

Ningbo Kemer Engineering Machinery Co.,LTD

We located in Ningbo China.With many years' experience in this field,our undercarriage parts are specially selected and fabricated.

Have been exported to South Asia,Australia,Turkey,Brazil and many other countries.

Products are widely welcomed by our customers.

Customized service is available here.We usually customized the Rubber Track Drive System according to customer's needs like the length,width,track width,loading capacity,speed and so on.If you have detailed drawing we can make accordingly.

Usually machine facotry will buy Rubber Track Assembly from us and connect to their machines.

Our Products

0.5 to 80 ton Track Assembly is available here.0.5 to 10 ton Rubber Undercarriage Chassis

We make 0.5 to 80 ton track undercarriages.

KRT3000

3 ton Rubber Track Drive System

KRT4000

4 ton Rubber Track Drive System

KRT1500

1.5 ton Rubber Track Drive System
