Hydraulic Rubber Track Chassis The Ultimate Solution for Energy Mining Operations

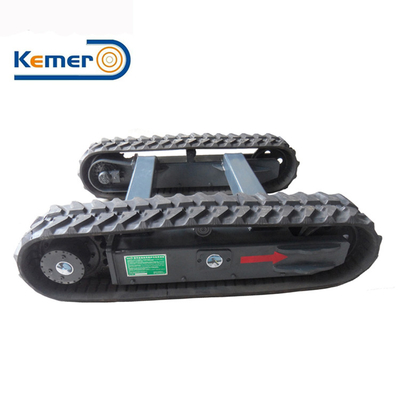

Large Image : Hydraulic Rubber Track Chassis The Ultimate Solution for Energy Mining Operations

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	KEMER
Model Number:	KRT2000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3,200.00/sets 1-4 sets
Packaging Details:	Steel pallet ,with Stretch film Winding
Supply Ability:	50 Set/Sets per Month

Contact Now

Hydraulic Rubber Track Chassis The Ultimate Solution for Energy Mining Operations

Description

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining	Showroom Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Provided
Marketing Type:	Ordinary Product	Warranty:	1 Year, 1 Year
Type:	Hydraulic Rubber Track Chassis	Loading Capacity:	2 Ton
Payload:	1.5 Ton	Other Motor Choice:	Available
Max Gradeability:	30°	Customized Service:	Available And Free
Color:	Black Or Per To Customer	Application:	Crawler Tracked Chassis Machine
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	None
After-sales Service Provided:	Video Technical Support, Online Support	Port:	Ningbo/Shanghai

Ningbo Kemer Rubber Track Chassis With Motor

Length	1420mm
Loading Capacity	2000 KG
Payload	1500 KG
Distance between center	1045 mm
Pitch	72mm
Track width	280 mm
Track Frame	Weld
Motor Displacement	16.1ml/r
Max speed	3 km/h
Max Output Torque(each side)	1669N.m
Max Gradeability	30°

Products details:

1.Customized track frame.We can customized the Hydraulic Rubber Track Chassis according to customer's needs.

2.Maintenance:tips to help customers how to maintain the undercarriage and how to longer the service life.

3.Good spare parts

Other Model

We can customized the Hydraulic Rubber Track Chassis according to your needs Above is just some of our models.

Our Company

Ningbo Kemer Engineering Machinery Co.,LTD

We located in Ningbo China.With many years' experience in this field,our undercarriage parts are specially selected and fabricated.

Have been exported to South Asia,Australia,Turkey,Brazil and many other countries.

Products are widely welcomed by our customers.

Customized service is available here.We usually customized the Hydraulic Rubber Track Chassis according to customer's needs like the length,width,track width,loading capacity,speed and so on.If you have detailed drawing we can make accordingly.

Usually machine facotry will buy undercarriages from us and connect to their machines.

Our Products

0.5 to 80 ton crawler chassis is available here.0.5 to 10 ton Hydraulic Rubber Track Chassis.

We make 0.5 to 80 ton track undercarriages.

KRT3000

3 ton Rubber Track Chassis

KRT4000

4 ton Rubber Track Chassis

KRT1500

1.5 ton hydraulic rubber track chassis
