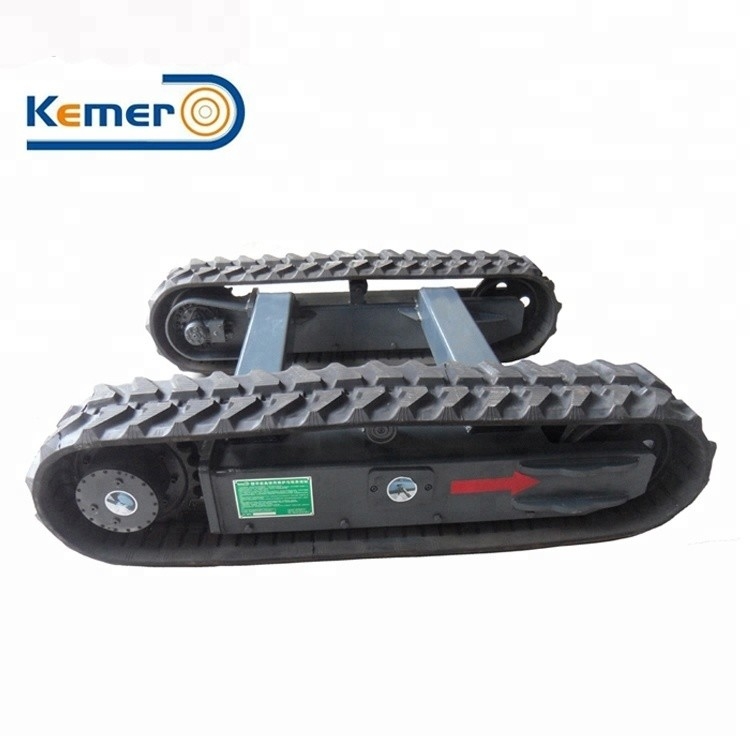

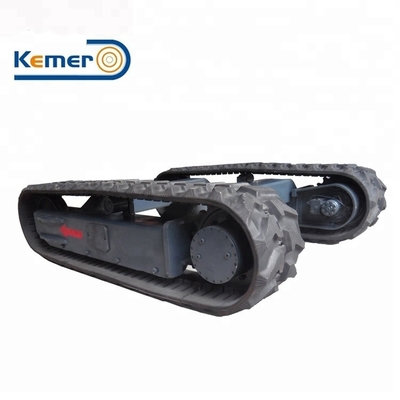

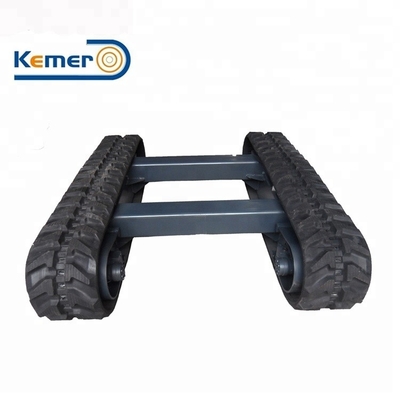

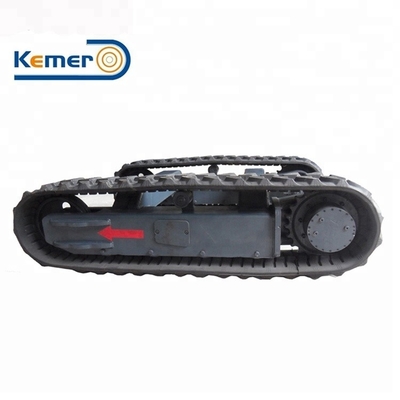

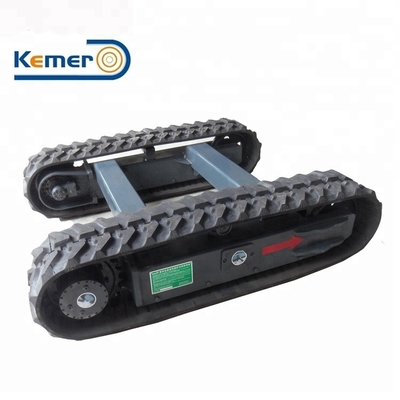

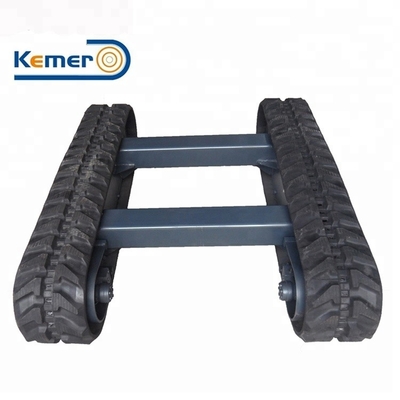

Construction Machinery Drilling Rigs Mini Crawler Chassis with 1 Ton Loading Capacity

Large Image : Construction Machinery Drilling Rigs Mini Crawler Chassis with 1 Ton Loading Capacity

Product Details:

Place of Origin:	Zhejiang, China
Model Number:	KRT1000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$3,000.00/sets 1-4 sets
Packaging Details:	Steel pallet ,with Stretch film Winding
Supply Ability:	50 Set/Sets per Month

Contact Now

Construction Machinery Drilling Rigs Mini Crawler Chassis with 1 Ton Loading Capacity

Description

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining	Showroom Location:	None
Compatible Brand:	LIEBHERR, Herrenknecht, CATERPILLAR, Komatsu, Hitachi, SunWard, John Deere, XGMA, Shantui, MANITOU, XCMG, Hyundai, Kubota, Atlas Copco, Jcb, ZOOMLION, LiuGong, Sany, Sandvik, CNH, Kobelco, Sumitomo, Oshkos, Metso, Terex, WIRTGEN, Doosan, VOLVO, MANITOWOC,	Year:	2023
Working Hours:	10001-20000	Type:	Hydraulic Rubber Track Chassis
Loading Capacity:	1 Ton	Payload:	0.5 Ton
Other Motor Choice:	Available	Max Gradeability:	30°
Customized Service:	Available And Free	Color:	Black Or Per To Customer
Application:	Crawler Tracked Chassis Machine	Warranty:	1 Year
Port:	Ningbo/Shanghai

Product Description

Construction Machinery Drilling Rigs Mini Crawler Chassis

Length	1200mm
Loading Capacity	1000 KG
Payload	500 KG
Distance between center	829 mm
Pitch	72mm
Track width	180/200/250 mm
Track Frame	Weld
Motor Displacement	16.1ml/r
Max speed	3 km/h
Max Output Torque(each side)	1669N.m
Max Gradeability	30°

Products details:

1.Customized track frame.We can customized the Hydraulic Rubber Crawler Chassis according to customer's needs.

2.Maintenance:tips to help customers how to maintain the Crawler Chassis and how to longer the service life.

3.Good spare parts

Other Model

We can customized the Hydraulic Rubber Crawler Chassis according to your needs Above is just some of our models.

Our Company

Ningbo Kemer Engineering Machinery Co.,LTD

We located in Ningbo China.With many years' experience in this field,our undercarriage parts are specially selected and fabricated.

Have been exported to South Asia,Australia,Turkey,Brazil and many other countries.

Products are widely welcomed by our customers.

Customized service is available here.We usually customized the Hydraulic Rubber Crawler Chassis according to customer's needs like the length,width,track width,loading capacity,speed and so on.If you have detailed drawing we can make accordingly.

Usually machine facotry will buy Crawler Chassis from us and connect to their machines.

Our Products

0.5 to 80 ton crawler chassis is available here.0.5 to 10 ton Hydraulic Rubber Crawler Chassis.

We make 0.5 to 80 ton Crawler Chassis.

KRT3000

3 ton Rubber Crawler Chassis

KRT4000

4 ton Rubber Crawler Chassis

KRT1500

1.5 ton hydraulic rubber Crawler Chassis
