2020 Construction Machinery's Steel Tracked Chassis 5 Ton Loading Capacity and Design

Name: 2020 Construction Machinery's Steel Tracked Chassis 5 Ton Loading Capacity and Design
Brand: Ningbo Kemer Engineering Machinery Co.,ltd.
SKU: KST5000
Availability: InStock

All Products

Crawler Track Undercarriage
(179)

Hydraulic Planetary Gearbox Reducer
(78)

Hydraulic Winch Machine
(79)

Hydraulic Motor Transmission
(38)

High Torque Hydraulic Motor
(14)

Concrete Pump Truck Gearbox
(2)

Electric Winch Machine
(1)

I'm Online Chat Now

2020 Construction Machinery's Steel Tracked Chassis 5 Ton Loading Capacity and Design

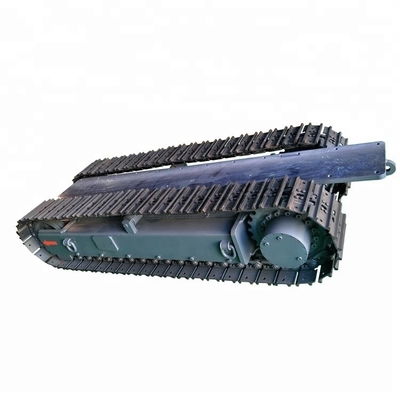

Large Image : 2020 Construction Machinery's Steel Tracked Chassis 5 Ton Loading Capacity and Design

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	KEMER
Model Number:	KST5000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$6,000.00/sets >=1 sets
Packaging Details:	Steel pallet ,with Stretch film Winding
Supply Ability:	50 Set/Sets per Month

Contact Now

2020 Construction Machinery's Steel Tracked Chassis 5 Ton Loading Capacity and Design

Description

Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Construction Works , Energy & Mining	Showroom Location:	None
Type:	Steel Crawler Track Undercarriage	Loading Capacity:	5 Ton
Payload:	4 Ton	Other Motor Choice:	Available
Max Gradeability:	30°	Customized Service:	Available And Free
Color:	Black Or Per To Customer	Application:	Crawler Tracked Chassis Machine
Warranty:	1 Year, 1 Year	Condition:	Used
After Warranty Service:	Video Technical Support, Online Support	Local Service Location:	None
Video Outgoing-inspection:	Provided	Machinery Test Report:	Not Available
Marketing Type:	Ordinary Product	After-sales Service Provided:	Video Technical Support, Online Support
Port:	Ningbo/Shanghai

Product Description

2018 Construction Machinery Ningbo Kemer Factory Steel Tracked Chassis

Length	2315mm
Loading Capacity	5000 KG
Payload	4000 KG
Length	2315 mm
Pitch	101.6 mm
Track width	250 mm
Track Frame	Weld
Motor Displacement	36.9/19.3 ml/r
Max speed	3.5 km/h
Max Output Torque(each side)	7700 N.m
Max Gradeability	30°

Products details:

1.Customized track frame.We can customized the track undercarriage according to customer's needs.

2.Maintenance:tips to help customers how to maintain the undercarriage and how to longer the service life.

3.Good spare parts

Other Model

We can customized the track undercarriage according to your needs

Our Company

Ningbo Kemer Engineering Machinery Co.,LTD

We located in Ningbo China.With many years' experience in this field,our undercarriage parts are specially selected and fabricated.

Have been exported to South Asia,Australia,Turkey,Brazil and many other countries.

Products are widely welcomed by our customers.

Customized service is available here.We usually customized the track undercarriage according to customer's needs like the length,width,track width,loading capacity,speed and so on.If you have detailed drawing we can make accordingly.

Usually machine facotry will buy undercarriages from us and connect to their machines.

Our Products

0.5 to 80 ton crawler chassis is available here.

We make 1.5 to 80 ton track undercarriages.

KST2000

2-3 ton steel crawler track undercarriage

KST3000

3- ton steel crawler track undercarriage

KRT3000

2.5 to 3.5 ton rubber crawler track undercarriage

Customers

Our Customers

Our customers come and visit our factory and we share a good time then.DIscussed about the products and their requirements.

Certifications
