5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff

I'm Online Chat Now

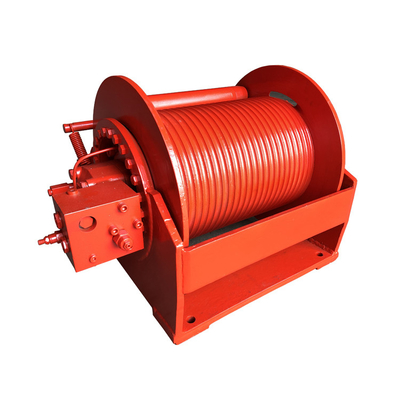

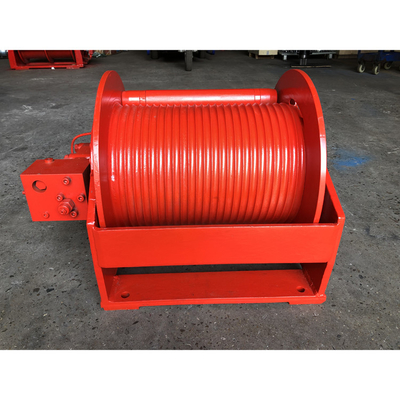

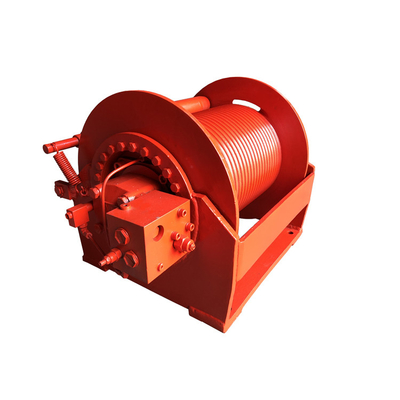

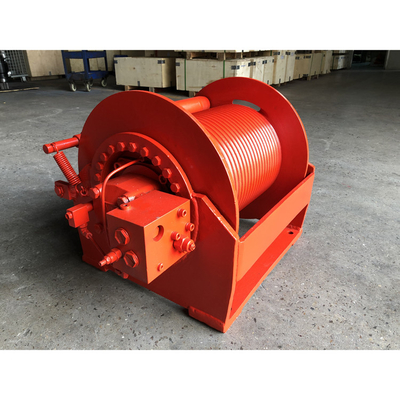

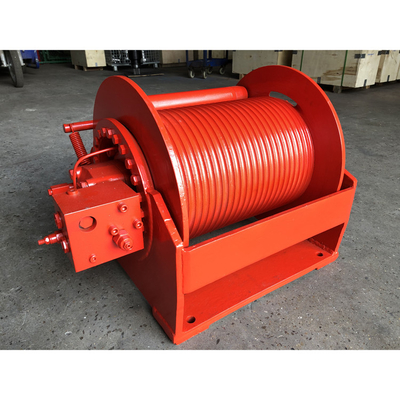

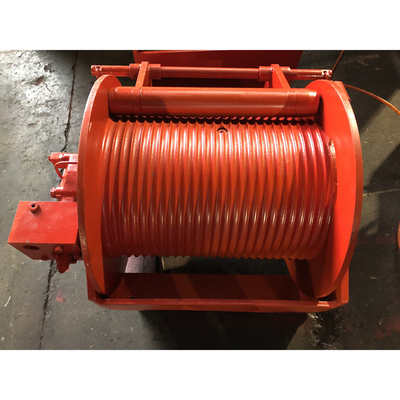

5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff

5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff

Large Image :  5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Peka
Model Number: S55
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $800.00 - $2,000.00/pieces
Packaging Details: Wooden Box
Supply Ability: 500 Piece/Pieces per Month

5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff

Description
Power Source: Hydraulic Application: CRANES
Capacity: 55 KN Model: S55
Pull Force: 55KN Rope Speed: 57 M/min
Reel Bottom Diameter: 324mm Total Displacement: 3600ml/r
Working Pre.Diff.: 220bar Rope Diameter: 16mm
Rope Capacity: 102m Weight: 260Kg
Hydraulic Motor: OMTW-200 Port: Ningbo/Shanghai/Hangzhou And Any Other Port You Prefer

Product Description
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 0

NP series hydraulic winches adopt our patented technology and advanced manufacture method.And
they are mainly consist of gerotor and axial piston hydraulic motor,Z type hydraulic multi-disc brake and C
type or KC type planetary gearbox,clutch,drum,support shaft,frame.Hydraulic motor can choose different
distributor according to the working conditions,such as counterbalance valve,overload valve,shuttle
valve,speed control directional valve and other functions'valve.This series winches featured compact and
elegant figure,small size and lightweight,and a high efficiency and power,low noise and good operating
performance.Therefore,the series hydraulic winches have been widely used in mobile crane,vehicle crane,
aerial platform,trackedvehicle and so on.NP series hydraulic winches have been well sold in China company
such as SANY,and also have been exported to the USA,Japan,Australia,Russia,Netherlands,Indonsia,Korea
and other areas in the world.
Drawing
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 1
Product Paramenters
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 2


5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 3
Certifications
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 4
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 5
Our Machines
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 6
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 7
Our Advantages

What We Can Do

1. One year warranty from delivery
2. Free components for replacement within warranty period
3. Professional solution provider
4. Free technical support at any time
5. Customer training is available.
6. On-site installation and commissioning is available.

FAQ

Q1:What's you MOQ?
A:MOQ is 1 piece.
Q2:What should I supply to get a suitable model of hydraulic winch and quotation?
A: In order to recommend a most suitable model of hydraulic winch we should to know:
1.Line pull(t)
2.Line Speed(m/min)
3.Drum capacity/Rope Length(m)
4.Rope Diameter(if have)
5.With braker or not
6.Which kind of machine does the hydraulic used on?
7.hydraulic system pressure and pump flow(if have)
8.other special requrements
5.5 ton 55KN Compact Hydraulic Winch with 260Kg Capacity and 220bar Working Pre.Diff 8
